PRODUCT CATALOG

NEW

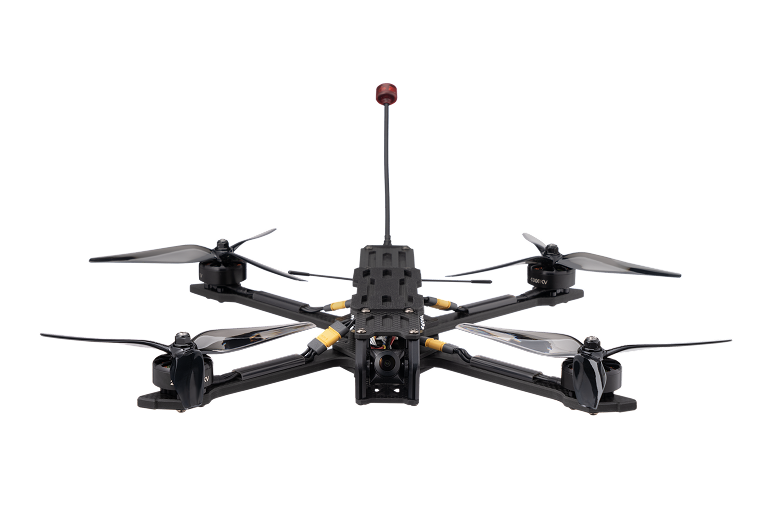

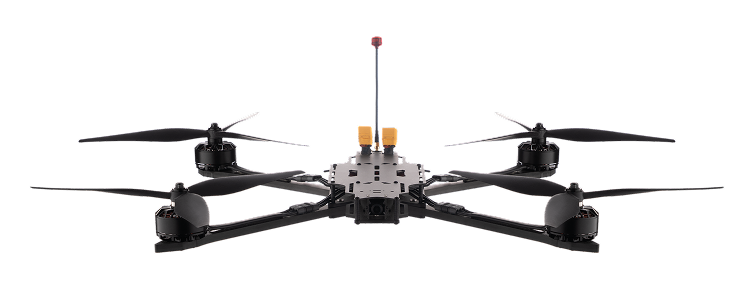

UNMANNED AERIAL VEHICLE BLACKBIRD WING
ANTIAIRCRAFT

TECHNICAL CHARACTERISTICS

• Device type Anti-Aircraft FPV-Drone
• Frame size 10 inches, carbon fiber
• Engine 3115-900kv
• Propellers 10 inches
• Video transmission module DJI O4 Pro (digital), Walksnаil
• Camera servo drive +
• Initiation fee +
• Antenna double Lollipop 5.8
• Radio receiver ELRS 915M Dual Core
• Battery 6S4P Samsung
• Purpose Optimized for intercepting and destroying enemy FPV drones in the air
• Payload weight Up to 0.5 kg
• Maximum speed 180 km/h
• Flight range 20 km

GET AN OFFER

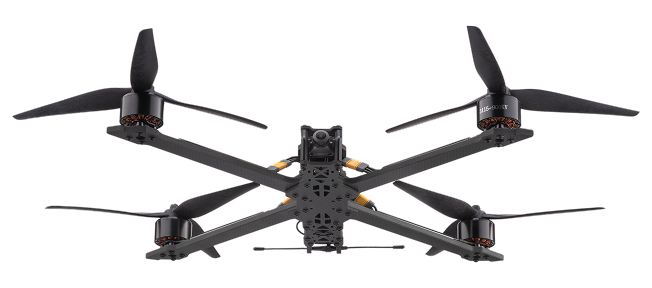

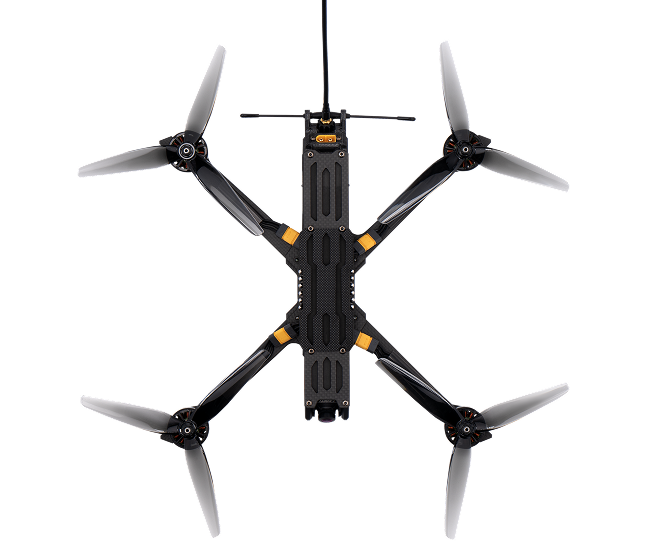

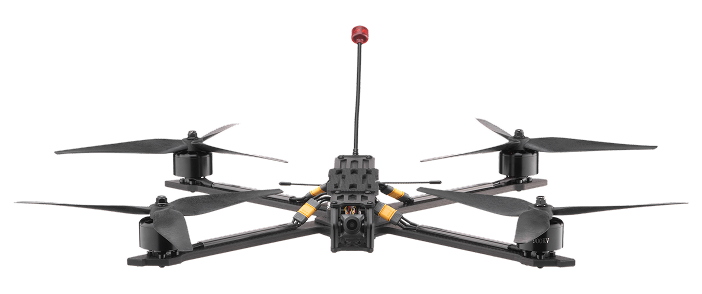

FPV QUADCOPTER BLACKBIRD
WING 7

TACTICAL AND TECHNICAL CHARACTERISTICS

• Payload weight Up to 1.5 kg*
• Flight time 15 min
• Tactical range 16 km
• Cruising speed 125 km/h
• Type of control ELRS, ТBS
• Control frequencies 150-1020, 1900-2700 MHz*
• Video channel frequencies from 1.1 to 7 GHz**
• Video transmission analog
• Flight altitude up to 3000 m
• Battery from 8000 mA

TECHNICAL CHARACTERISTICS

• UAV Type Quadcopter
• UAV takeoff method Vertical
• Propulsion Type Electric (Brushless Motors)
• Frame Size 7’
• Weight 600 g
• Overall dimensions of the UAV without propellers, battery, and video transmitter antenna:
• - width 267 mm
• - length 226 mm
• - height 31 mm

STRUCTURAL CHARACTERISTICS

• UAV engines 2807 1300 kV
• UAV radio receiver ELRS
• Radio receiver control frequency range 150-1020, 1900-2700 MHz
• UAV video transmitter iFlight Blitz
• Operating frequencies for video signal transmission 5,8/4,9/3,3/1,2 GHz
• UAV camera RUNCAMPHOENIX2 SP
• Resolution of the UAV camera, TVL not less than 1000
• UAV propellers HQ / 7×3,5×3 cm
• UAV battery 6s2p
• Additional equipment Update system

GET AN OFFER

COMPLEX WITH GROUND CONTROL STATION FPV BLACKBIRD
WING 7

COMPONENTS

• FPV BLACKBIRD WING 7
• Remote unit
• Cable — 25 m
• Control antenna — Yagi-Uda
• Antenna in the video 5.8 GHz — Helix 10/16 turns
• Antenna in the video 1.3 GHz — Helix 1.3 GHz
• Glasses — 1 piece
• Remote control — 1 piece

GET AN OFFER

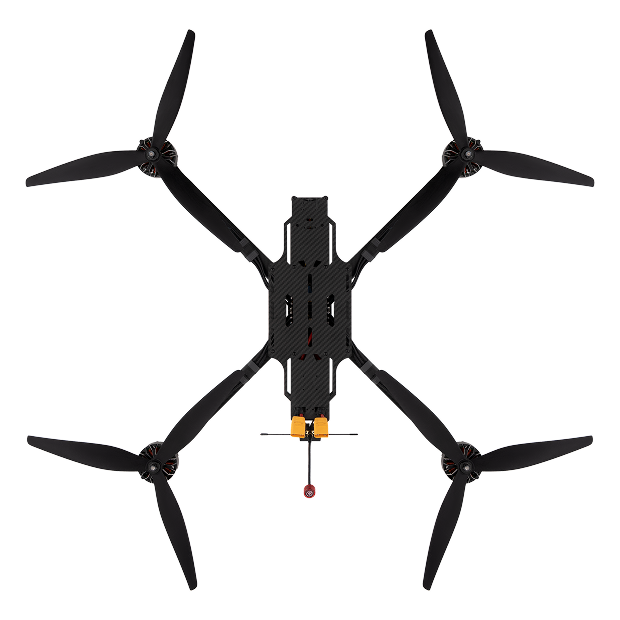

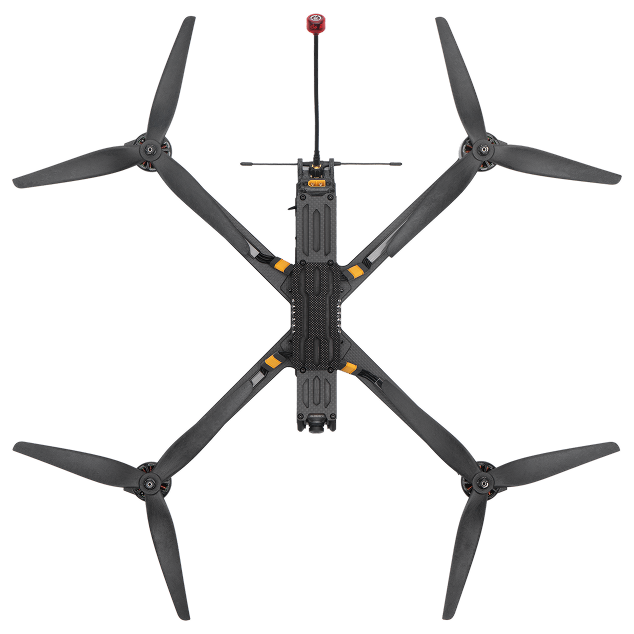

FPV QUADCOPTER BLACKBIRD
WING 10

TACTICAL AND TECHNICAL CHARACTERISTICS

• Payload capacity up to 2,5 kg*
• Flight time from 15 min
• Tactical range 19 km
• Cruising speed 150 km/h
• Type of control ELRS, TBS
• Control frequencies 150-1020, 1900-2700 MHz*
• Video channel frequencies from 1.1 to 7 GHz**
• Video transmission analog
• Flight altitude up to 3000 m
• Battery from 12600 mА

TECHNICAL CHARACTERISTICS

• UAV Type Quadcopter
• UAV takeoff method Vertical
• Propulsion Type Electric (Brushless Motors)
• Frame Size 10’
• Weight 1020 g
• Overall dimensions of the UAV without propellers, battery, and video transmitter antenna:
• - width 250 mm
• - length 248 mm
• - height 38 mm

STRUCTURAL CHARACTERISTICS

• UAV engines 3115 900 кV
• UAV radio receiver ELRS
• Radio receiver control frequency range 150-1020, 1900-2700 MHz
• UAV video transmitter Skyzone 2501, Rush Max solo
• Operating frequencies for video signal transmission From 1.1 to 7 MHz**
• UAV camera caddx ratel pro
• Resolution of the UAV camera, TVL not less than 1000
• UAV propellers HQ / 10×4,5×3 сm
• UAV battery 6s3p
• Additional equipment Update system

GET AN OFFER

COMPLEX WITH GROUND CONTROL STATION FPV BLACKBIRD
WING 10

COMPONENTS

• FPV BLACKBIRD WING 10
• Remote unit
• Cable — 25 m
• Control antenna — Yagi-Uda
• Antenna in the video 5.8 GHz — Helix 10/16 turns
• Antenna in the video 1.3 GHz — Helix 1.3 GHz
• Glasses — 1 piece
• Remote control — 1 piece

GET AN OFFER

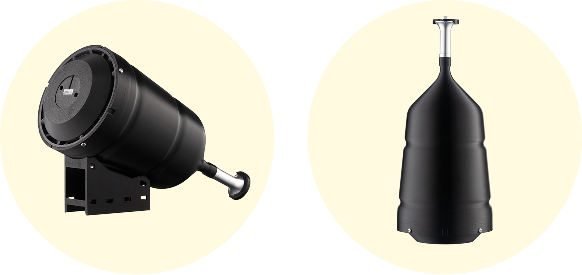

COMPLEX BLACKBIRD
WING 10 WITH FIBER OPTICS

TECHNICAL CHARACTERISTICS

• Optical fiber length 10/15/20 km (±3%)
• Coil diameter 105,6 mm (±3%)
• Weight of the complex ≤1,0 kg
• Working control distance 9,0 km
• Wave length:
• - video signal 1310 nm
• - control signal 1550 nm
• Deployment time < 7 minutes
• Video transmission delay ≤ 0,05 s (50 ms)
• Maximum speed 70 km/h
• Optical fiber type G.657.A2

COMPONENTS

• FPV BLACKBIRD WING 10
• Fiber optic communication channel (10 km) — 1 piece
• Product passport — 1 set
• Operating manual — 1 set
• Packaging containers — 1 piece

GET AN OFFER

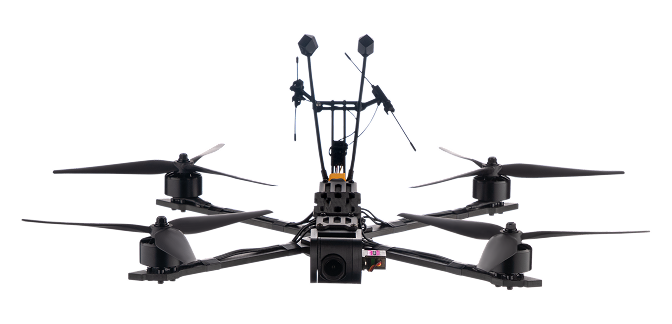

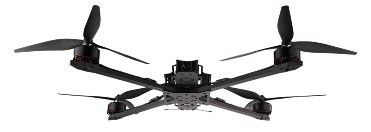

BLACKBIRD
WING 13

TACTICAL AND TECHNICAL CHARACTERISTICS

• Payload weight Up to 7 kg
• Operating range 15 - 25 km
• Communication channel range 15 - 25 km
• Speed:
• - without payload 120 km/h
• - with payload 70 km/h
• Maximum flight altitude Up to 2 km
• Deployment and packing time 2 minutes each
• Flight time with 6S2P 8000 mAh battery:
• - without payload 25 minutes
• - with payload 10 minutes

TECHNICAL CHARACTERISTICS

• UAV Type Quadcopter
• UAV takeoff method Vertical
• Propulsion Type Electric (Brushless Motors)
• Frame Size 13’
• Weight 2250 g
• Overall dimensions of the UAV without propellers, battery, and video transmitter antenna:
• - width 480 mm
• - length 480 mm
• - height 45 mm

STRUCTURAL CHARACTERISTICS

• UAV engines 4214-660 kV
• UAV radio receiver ELRS, TBS
• Radio receiver control frequency range 150-1020, 1900-2700 MHz
• UAV video transmitter 2.5 W
• Operating frequencies for video signal transmission from 1.1 to 7 GHz**
• UAV camera caddx ratel pro
• Resolution of the UAV camera, TVL not less than 1200
• UAV propellers HQ / 13×9×3v2
• UAV battery 6s3p, 6s8p
• Flight controller F405+80A ESC
• Antenna RUSHFPV Cherry

GET AN OFFER

COMPLEX WITH GROUND CONTROL STATION FPV BLACKBIRD
WING 13

Components

• FPV BLACKBIRD WING 13
• Remote unit
• Cable — 25 m
• Control antenna — Yagi-Uda
• Antenna in the video 5.8 GHz — Helix 10/16 turns
• Antenna in the video 1.3 GHz — Helix 1.3 GHz
• Glasses — 1 piece
• Remote control — 1 piece

GET AN OFFER

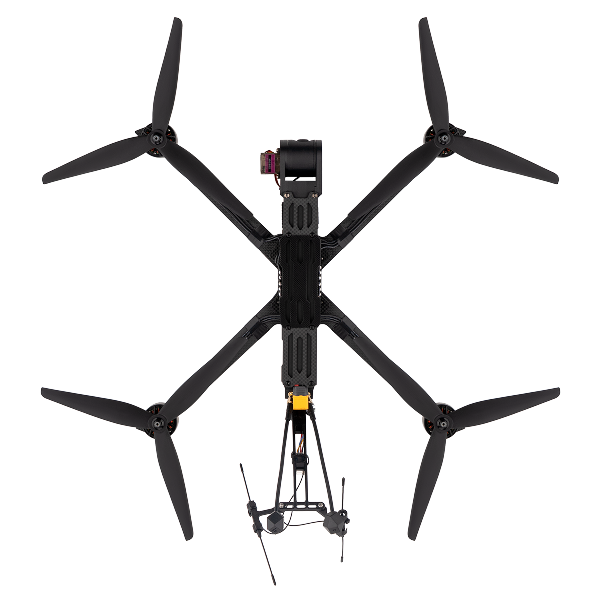

COMPLEX BLACKBIRD
WING 13 WITH FIBER OPTICS

TECHNICAL CHARACTERISTICS

• Optical fiber length 10/15/20 km (±3%)
• Coil diameter 131,3 mm (±3%)
• Weight of the complex ≤1,4 kg
• Working control distance 13,5 km
• Wave length:
• - video signal 1310 nm
• - control signal 1550 nm
• Deployment time < 7 minutes
• Video transmission delay ≤ 0,05 s (50 ms)
• Maximum speed 70 km/h
• Optical fiber type G.657.A2

Components

• FPV BLACKBIRD WING 13
• Fiber optic communication channel (15 km) — 1 piece
• Product passport — 1 set
• Operating manual — 1 set
• Packaging containers — 1 piece

GET AN OFFER

Fpv Quadcopter BLACKBIRD
WING 15

Tactical and technical characteristics

• Camera Analog 1500 TVL
• Working payload Up to 10 kg
• Control range and video up to 30 km (with direct radio visibility and using a repeater)
• Combat radius up to 19 km (depending on payload weight)
• Flight time 20 min. with a weight of 8 kg (depending on the environment)
• Cruising speed 60-100 km/h
• Control frequencies 150-1020, 1900-2700 MHz
• Video channel frequencies From 1.1 to 7 GHz**
• Engines 5215 400kv
• Video transmitter power 2W for 3.3 GHz / 3W for 5.8 GHz

TECHNICAL CHARACTERISTICS

• UAV Type Quadcopter
• UAV takeoff method Vertical
• Propulsion Type Electric
(Brushless Motors)
• Frame size 15’
• Weight 2280 g

Structural Characteristics

• UAV engines 5215 400Кv
• UAV radio receiver ELRS, TBS
• Radio receiver control frequency range 150-1020, 1900-2700 MHz
• UAV video transmitter 2.5 W
• Operating frequencies for video signal transmission from 1.1 to 7 MHz
• UAV camera caddx ratel pro
• Resolution of the UAV camera, TVL not less than 1200
• UAV propellers HQ1507
• UAV battery 6s3p, 6s8p
• Electronic Speed Controller (ESC) 110A ESC 4IN 1 8S
• Flight controller Hakrc f405v2

GET AN OFFER

COMPLEX WITH GROUND CONTROL STATION FPV BLACKBIRD
WING 15

Components

• FPV BLACKBIRD WING 15
• Remote unit
• Cable — 25 m
• Control antenna — Yagi-Uda
• Antenna in the video 5.8 GHz — Helix 10/16 turns
• Antenna in the video 1.3 GHz — Helix 1.3 GHz
• Glasses — 1 piece
• Remote control — 1 piece

GET AN OFFER

COMPLEX BLACKBIRD
WING 15 WITH FIBER OPTICS

TECHNICAL CHARACTERISTICS

• Optical fiber length 10/15/20 km (±3%)
• Coil diameter 131,3 mm (±3%)
• Weight of the complex ≤1,4 kg
• Working control distance 13,5 km
• Wave length:
• - video signal 1310 nm
• - control signal 1550 nm
• Deployment time < 7 minutes
• Video transmission delay ≤ 0,05 s (50 ms)
• Maximum speed 70 km/h
• Optical fiber type G.657.A2

Components

• FPV BLACKBIRD WING 15
• Fiber optic communication channel (15 km) — 1 piece
• Product passport — 1 set
• Operating manual — 1 set
• Packaging containers — 1 piece

GET AN OFFER
